Magnet Mount for Starlink Standard

Black Textured Mounts are out of stock as of 11/18.  Orders made after 11/18 are expected to ship the week of 12/2. Thank you for your patience.

Gloss White mounts are in stock and ready to ship!

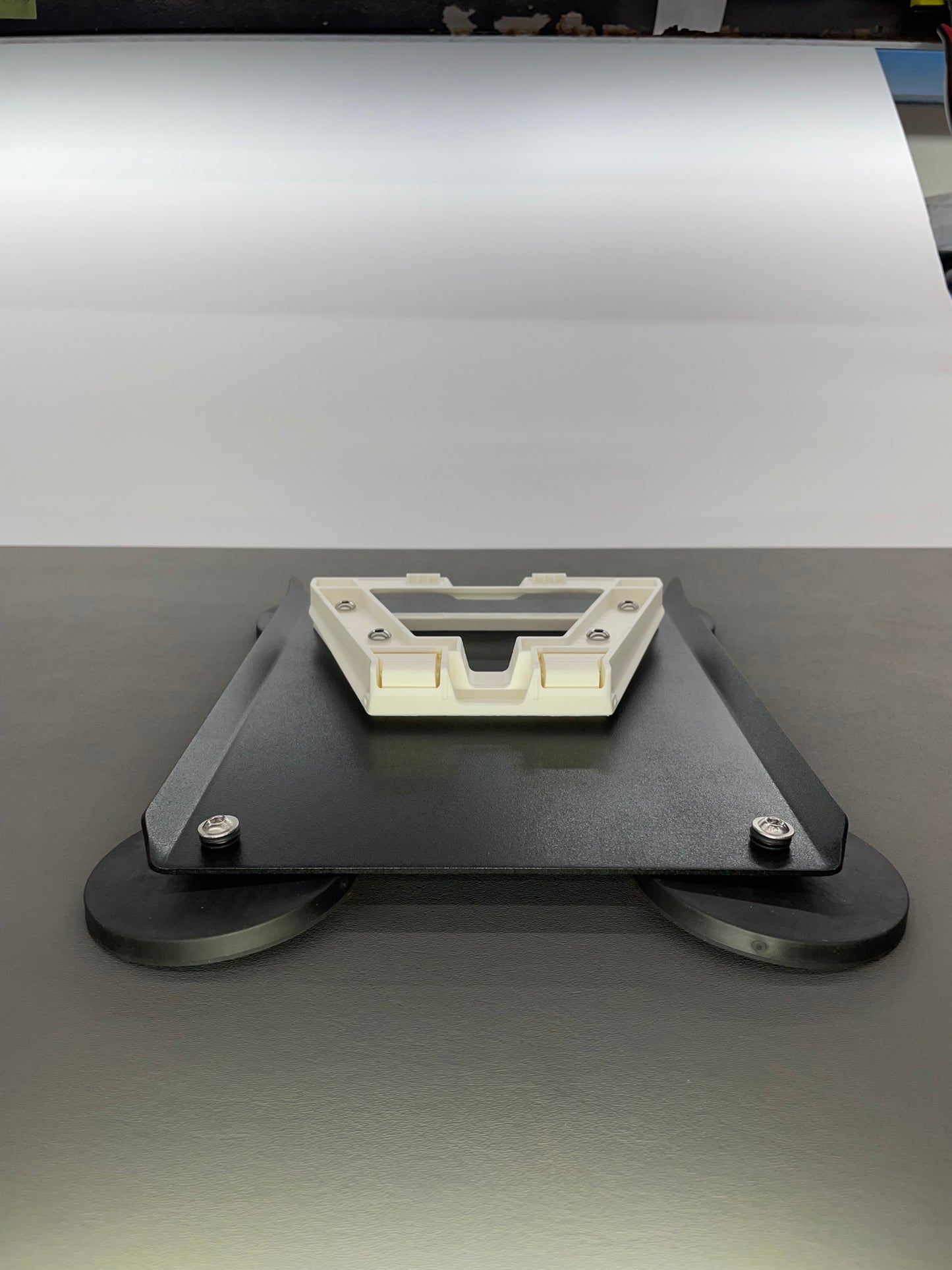

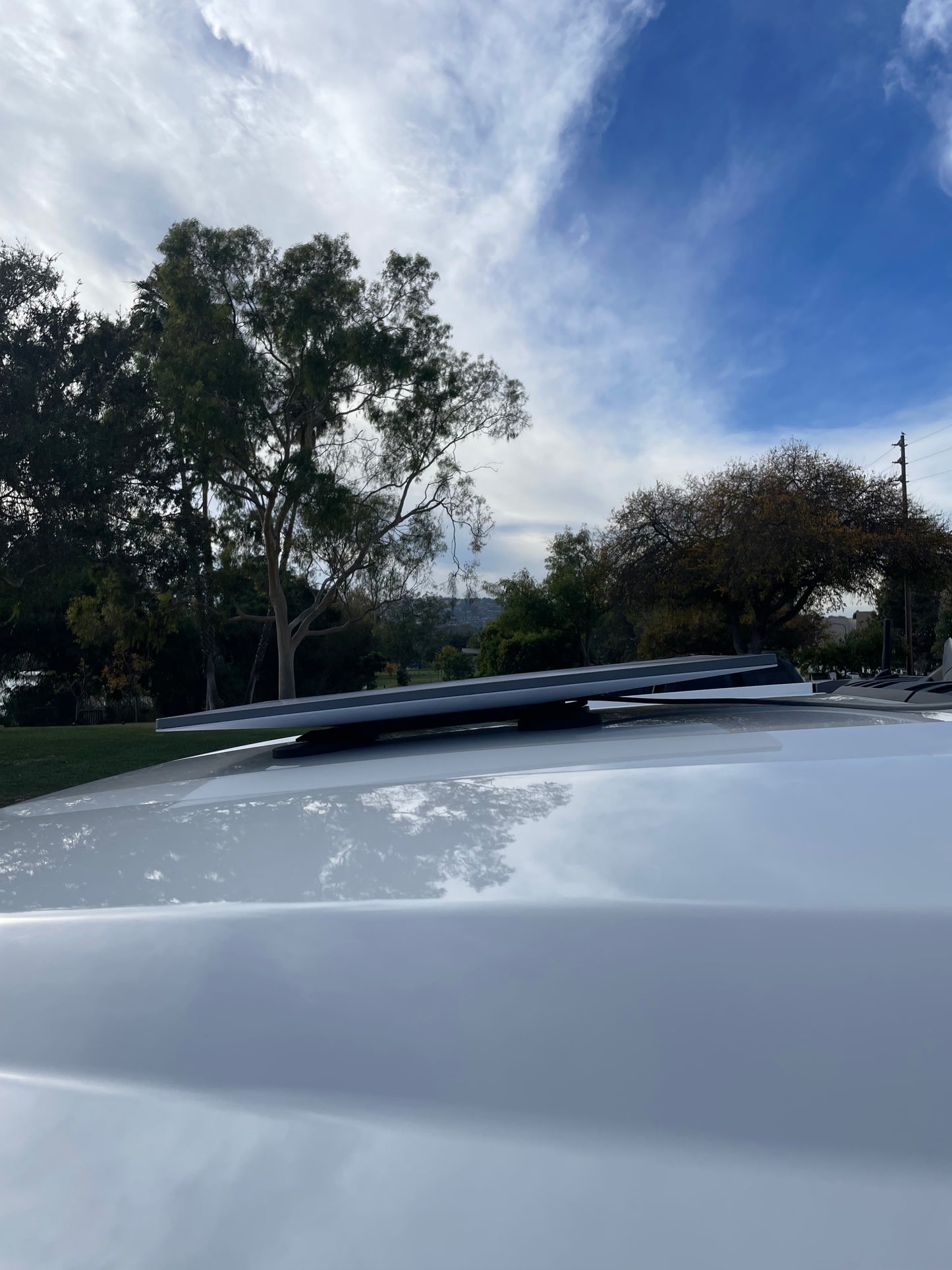

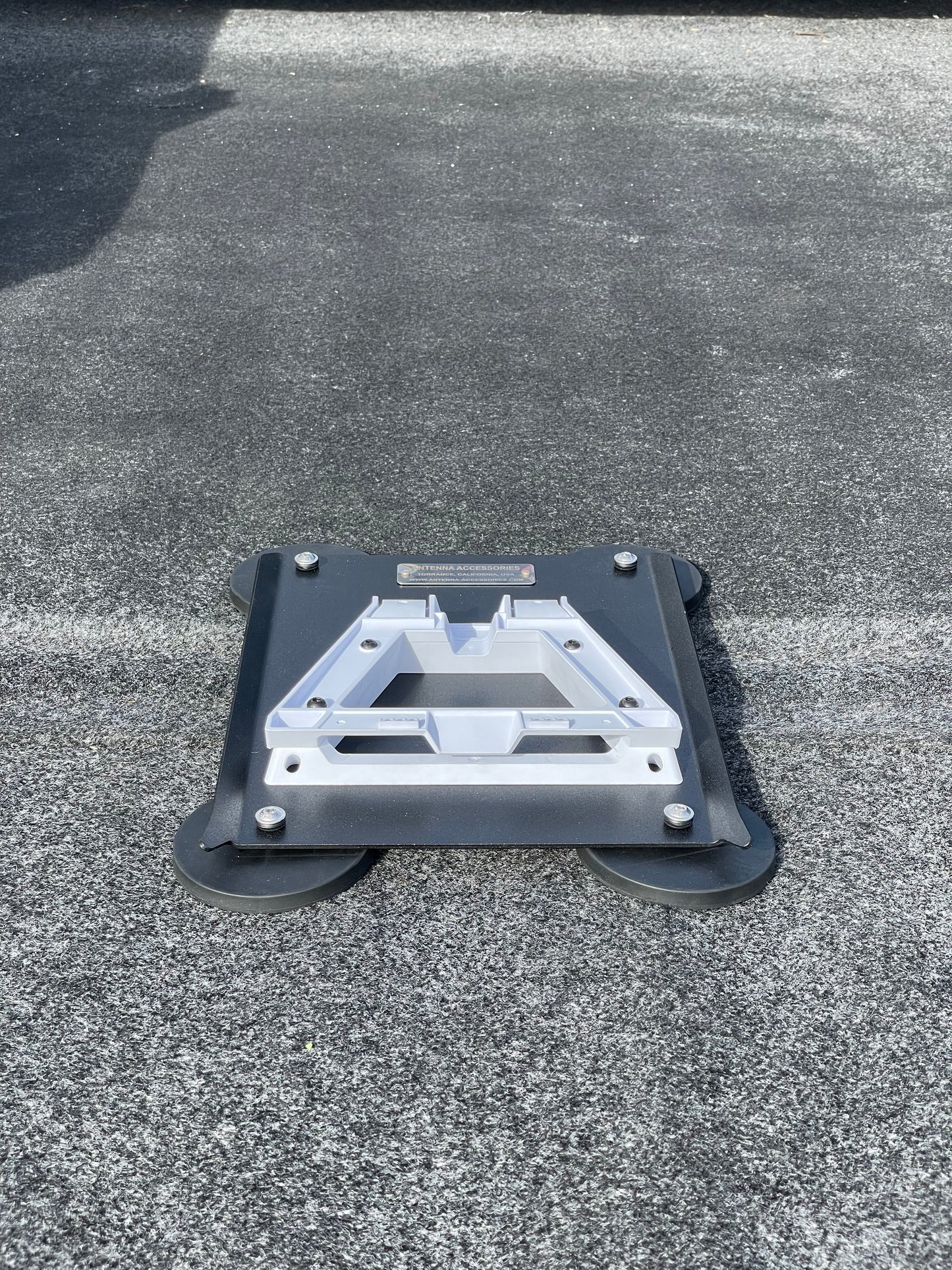

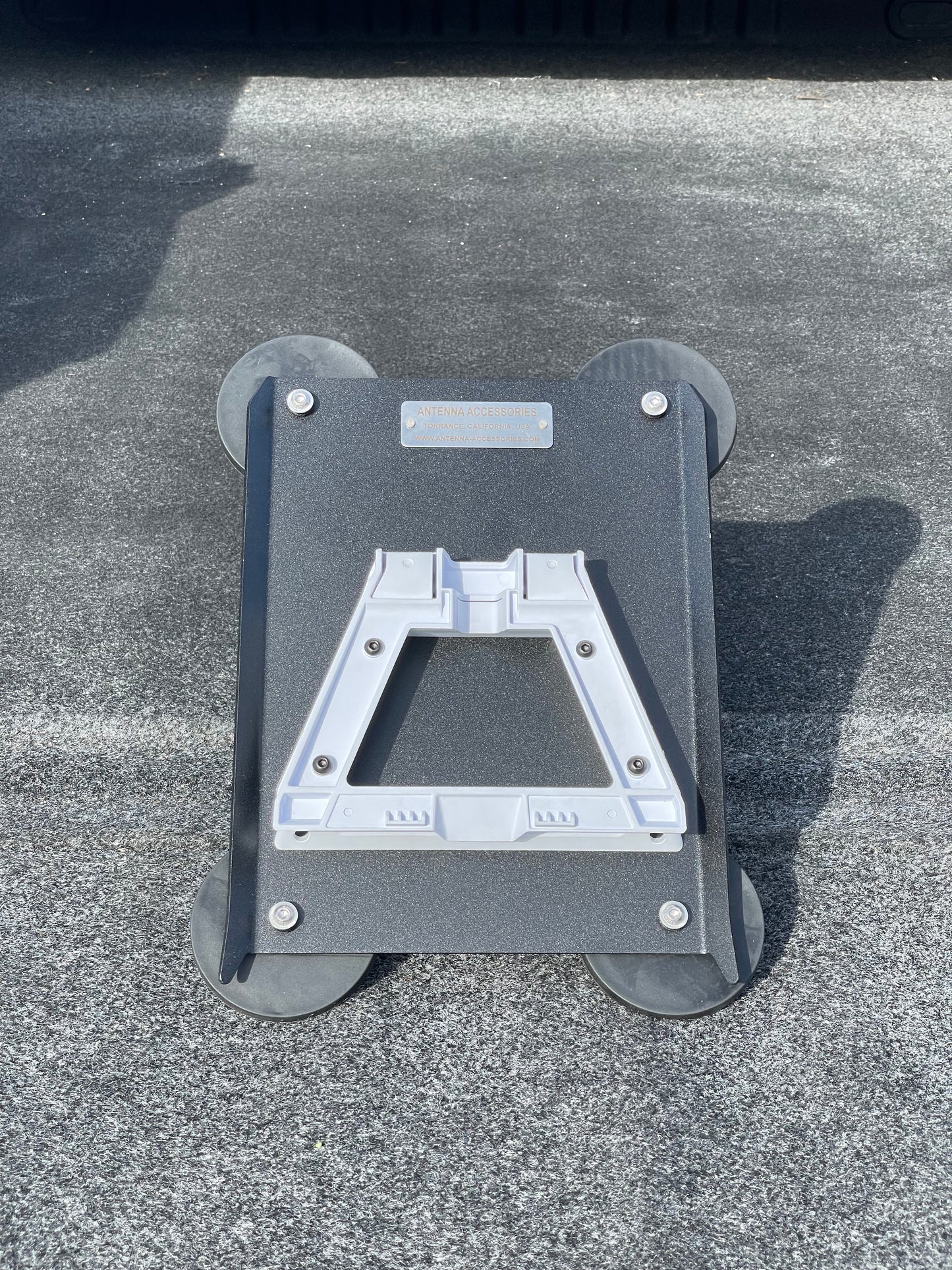

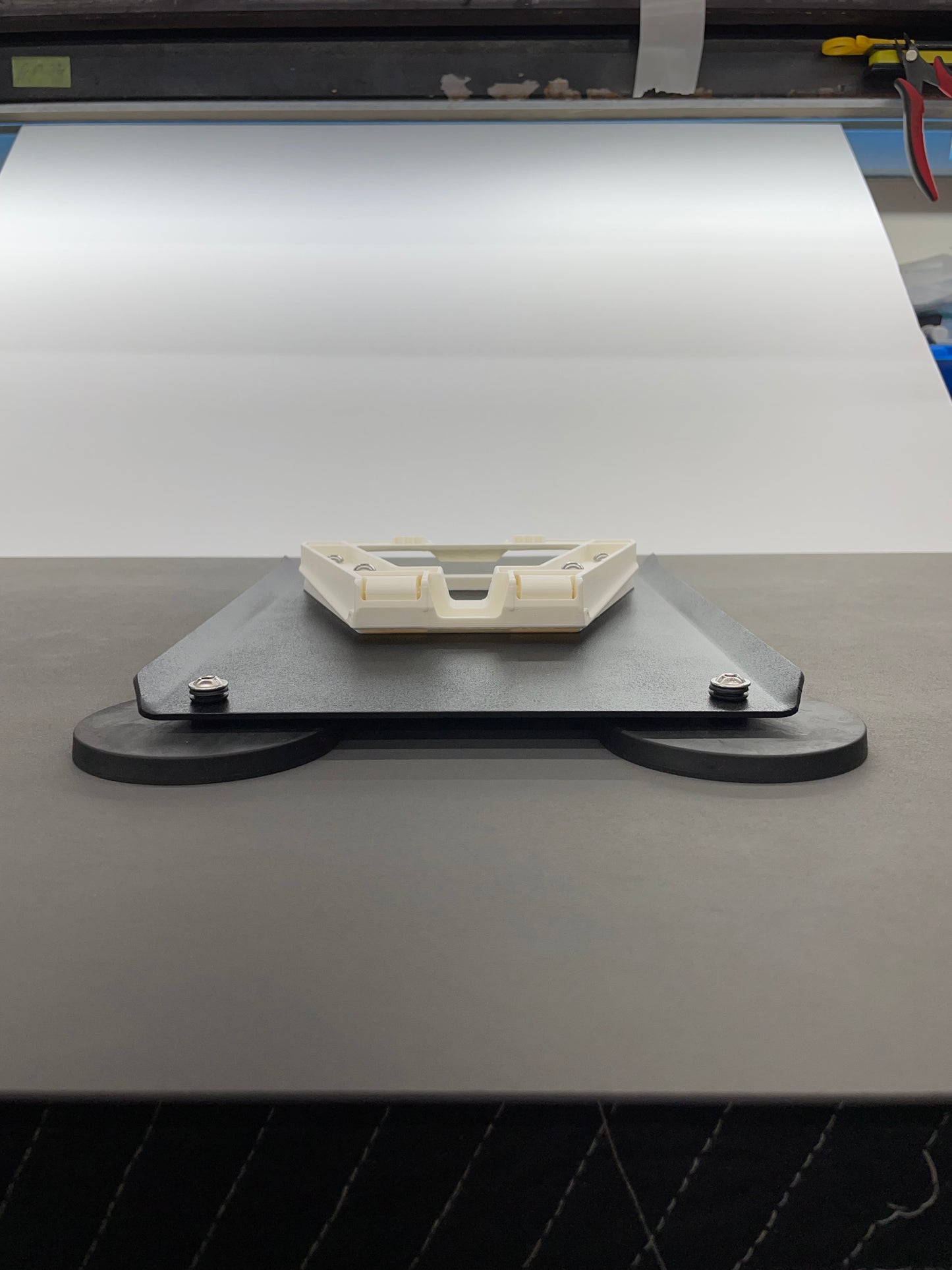

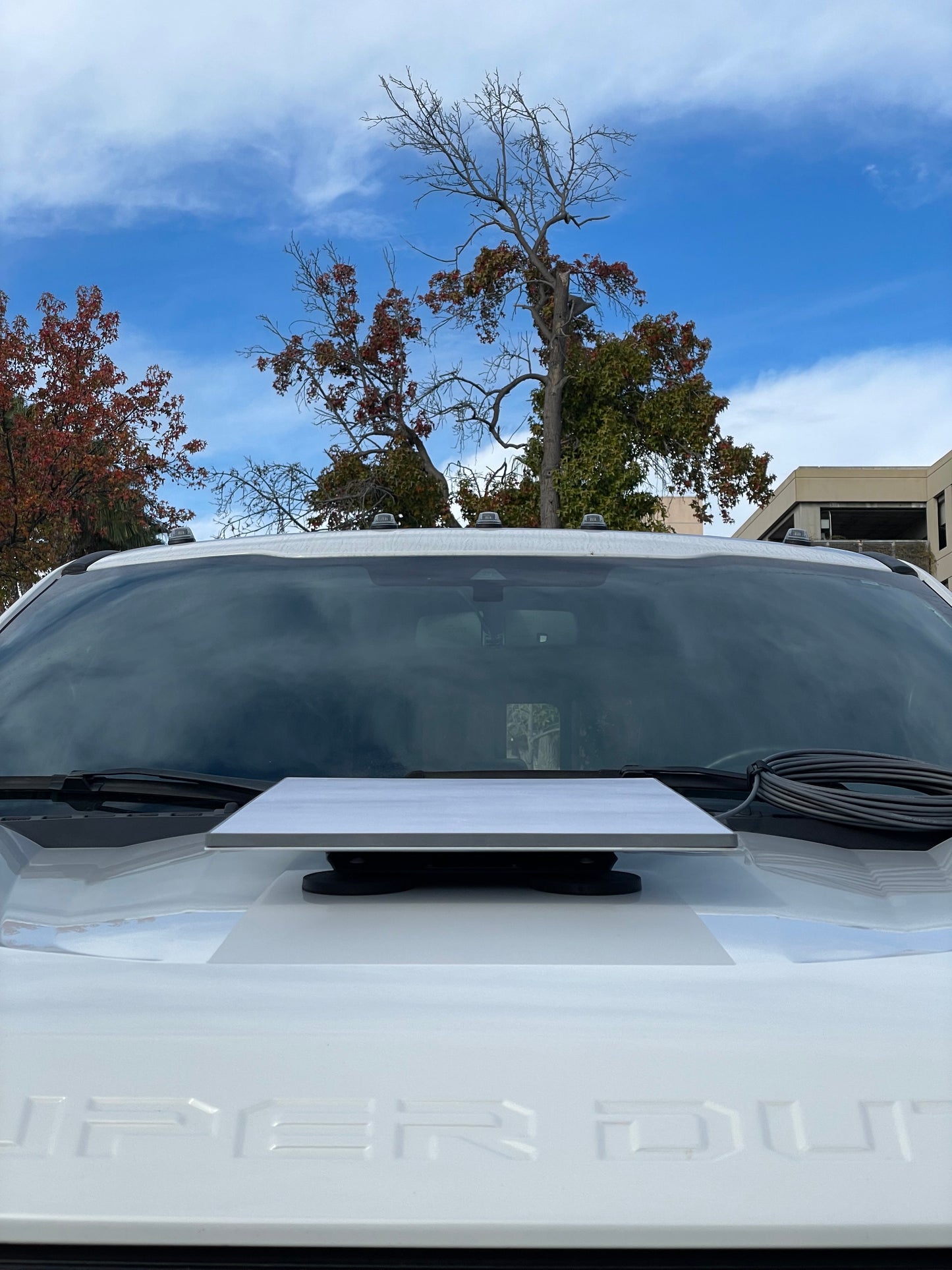

This mount is an excellent way to temporarily or permanently mount the new Standard Starlink Antenna (Flat Model) to nearly any* Vehicle!

*Mounting to aluminum cabs or fiberglass tops can be accomplished in conjunction with our VHB Adhesive Magnet Plate Kits!

Notable Mount Features:

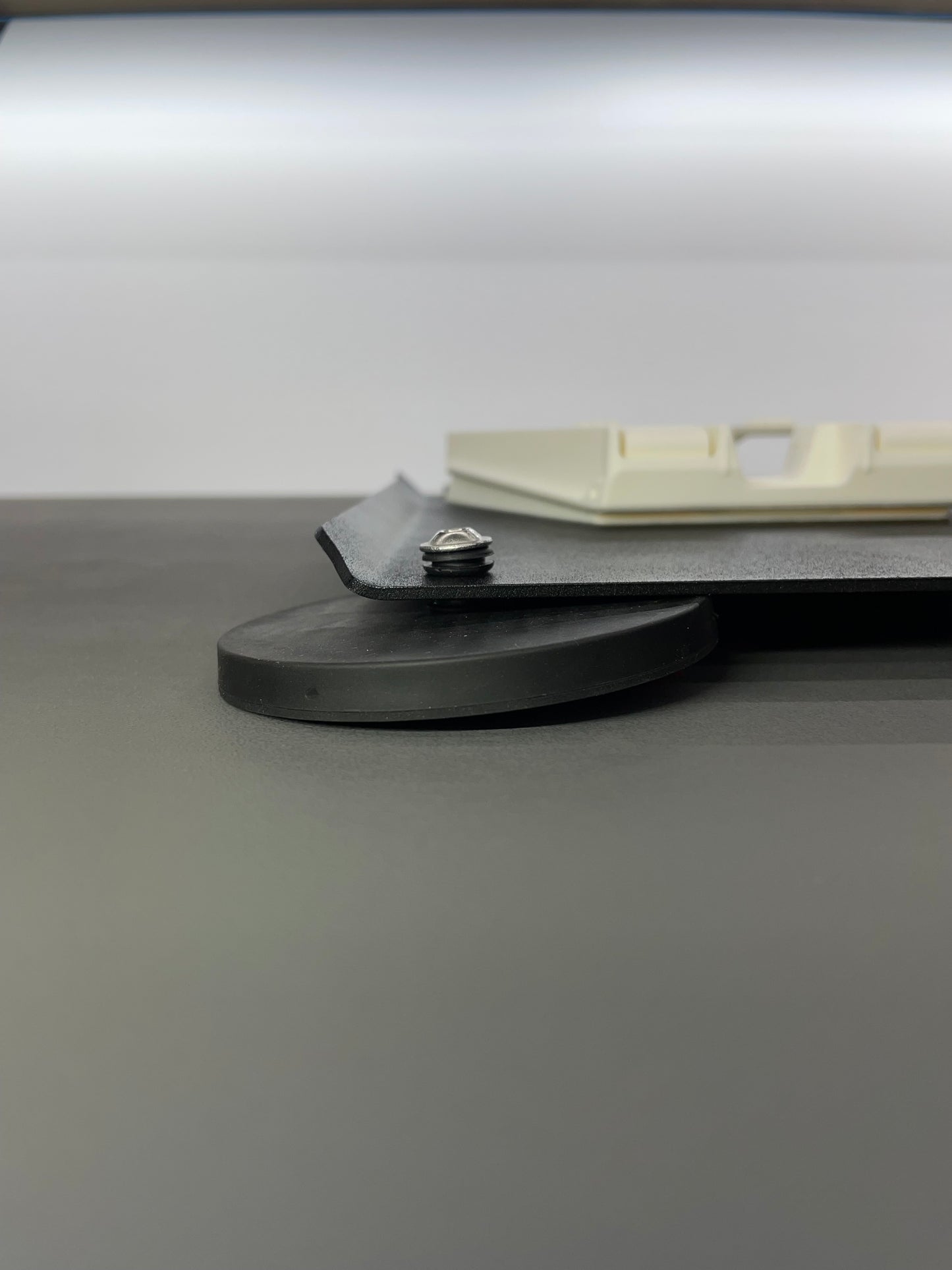

• 4 powerful rubber coated magnet assemblies protect your vehicle paint while holding on tight during high speeds and light off-roading.

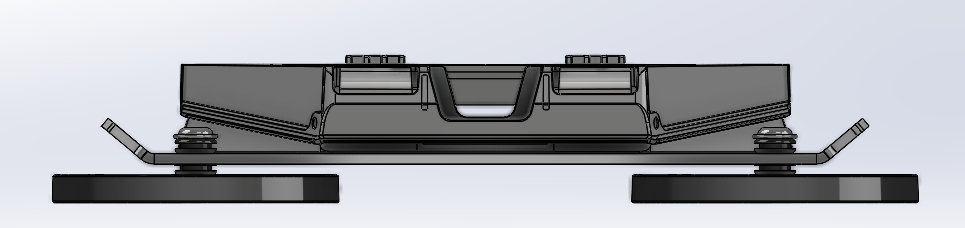

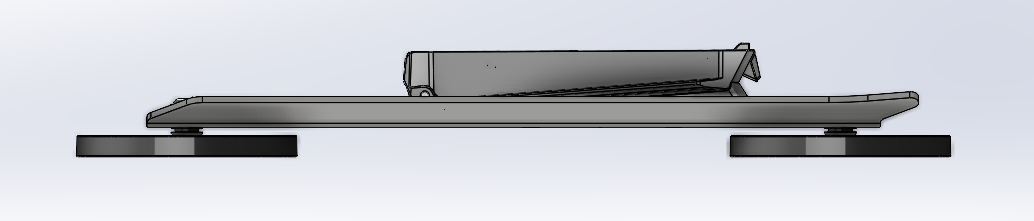

• Each magnet articulates to conform to contoured vehicle surfaces and is rubber isolated to reduce transferred road vibration.

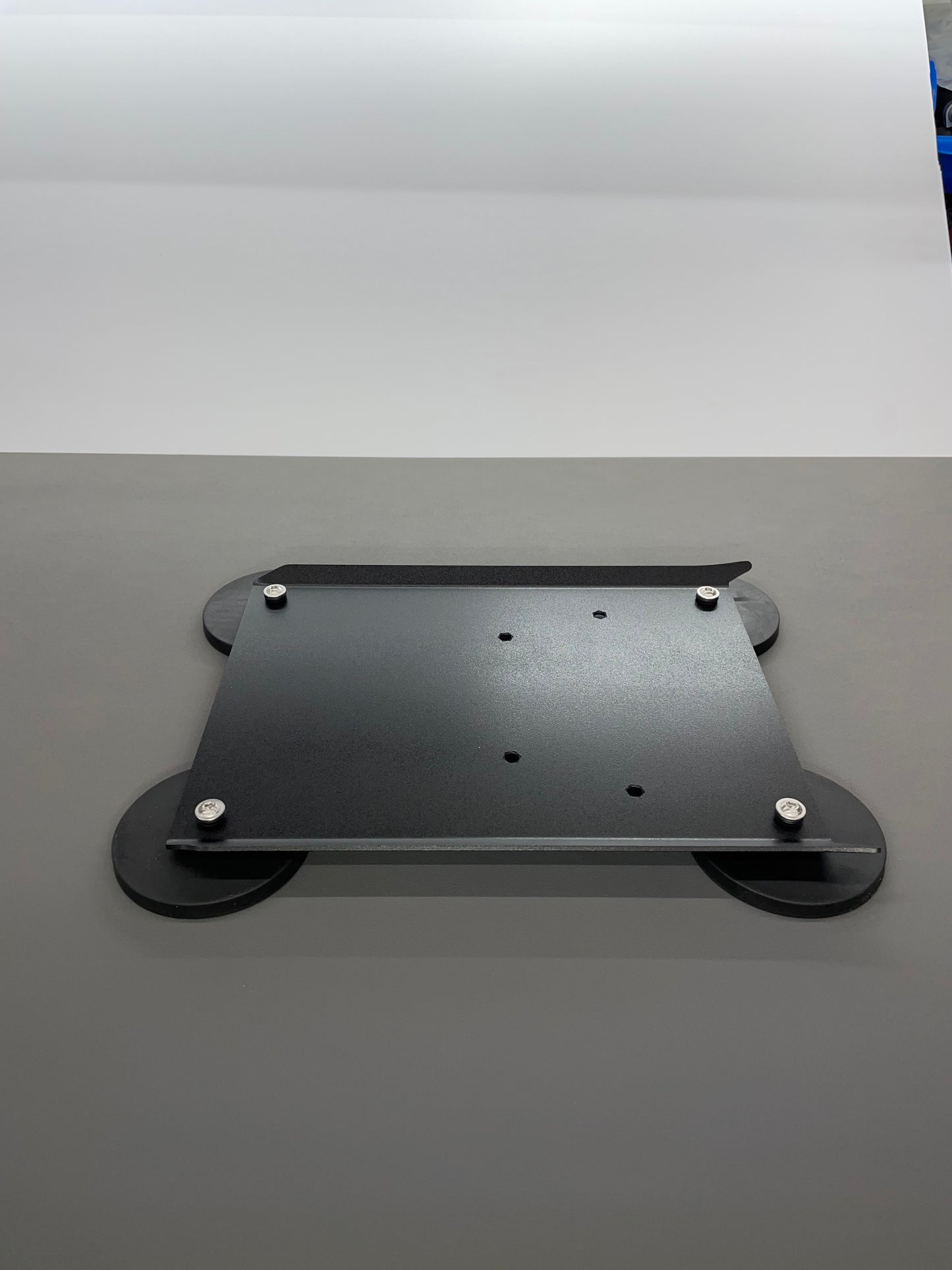

• The mount plate is constructed from lightweight 5052 Aluminum

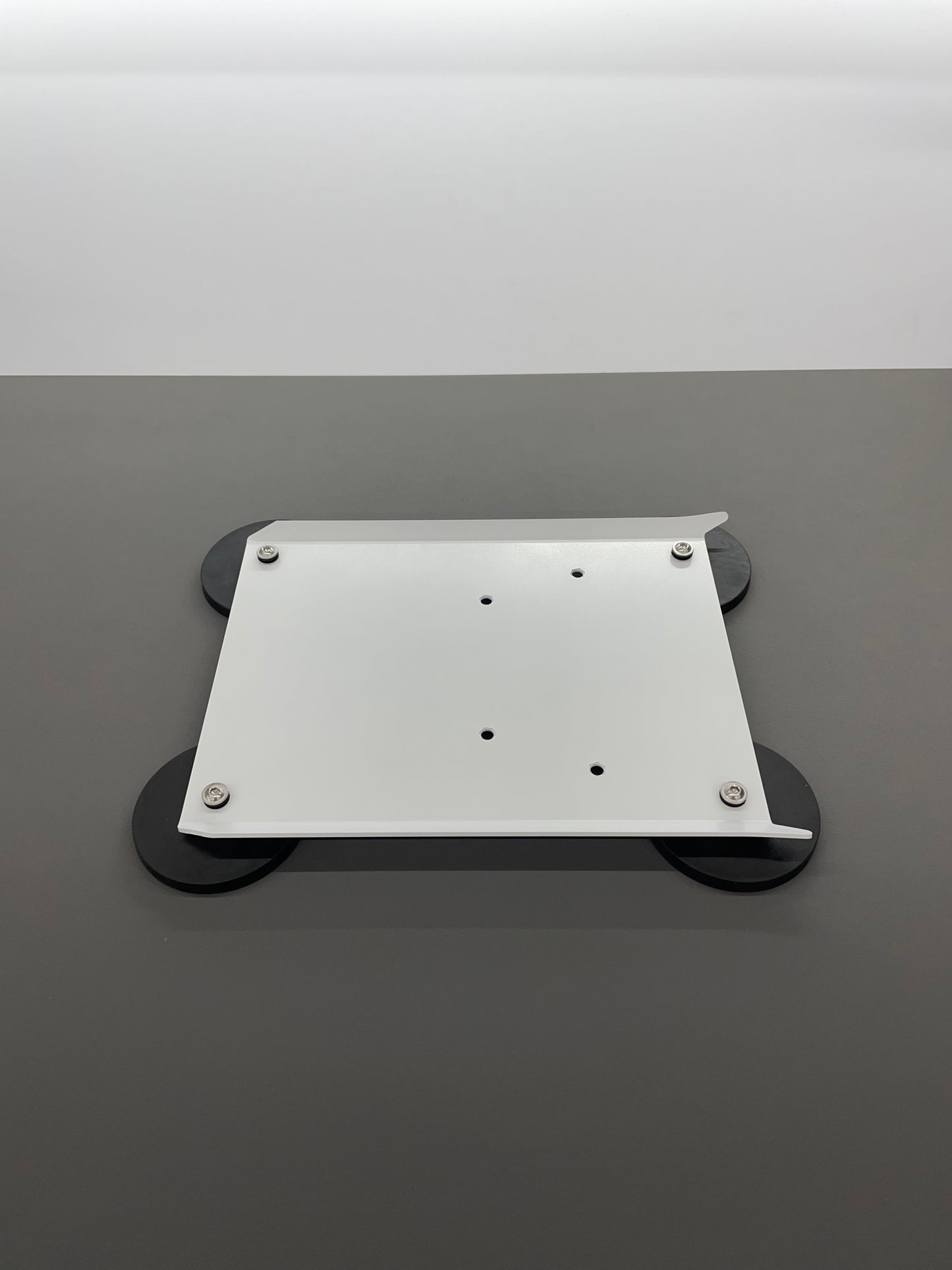

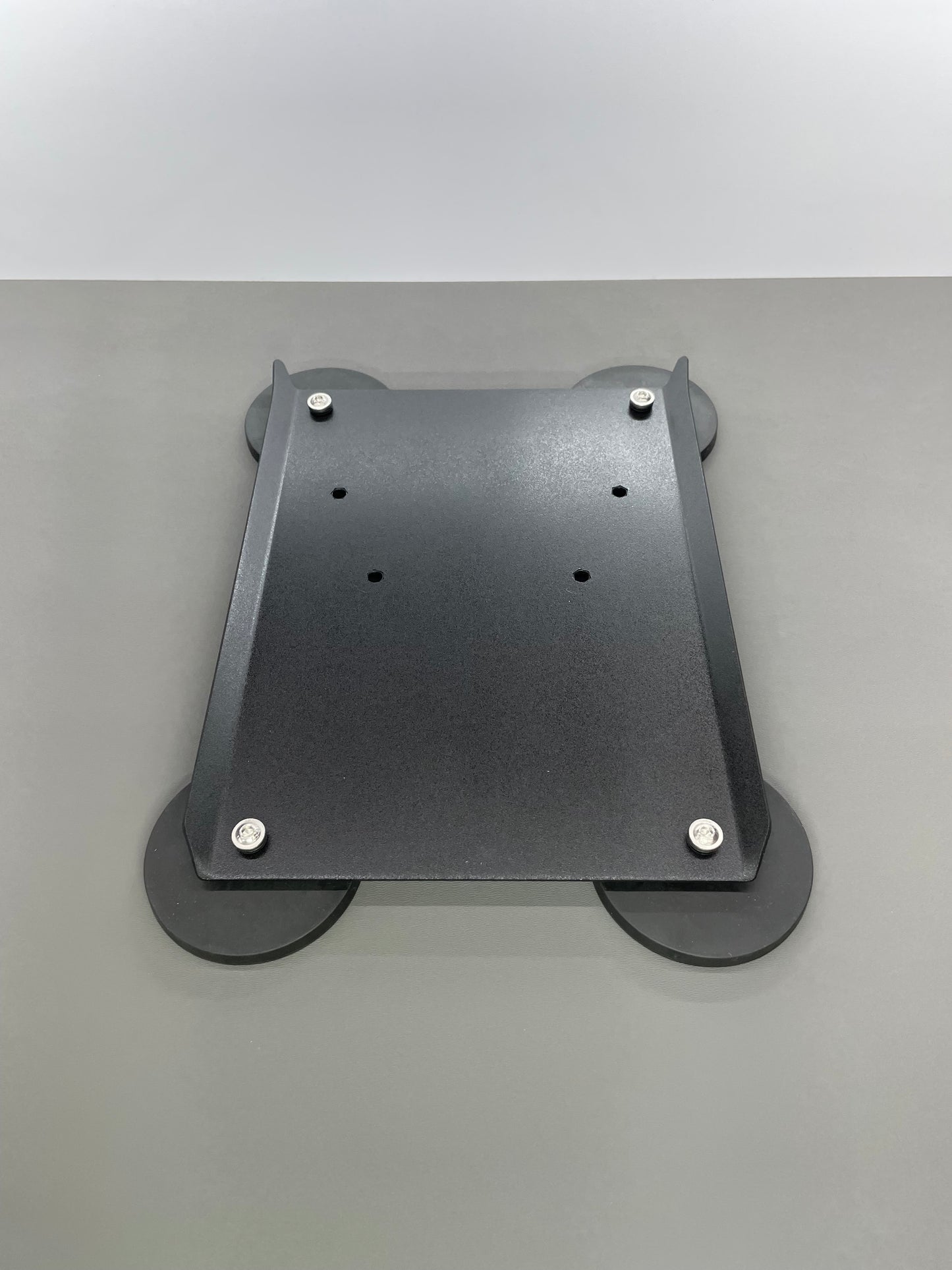

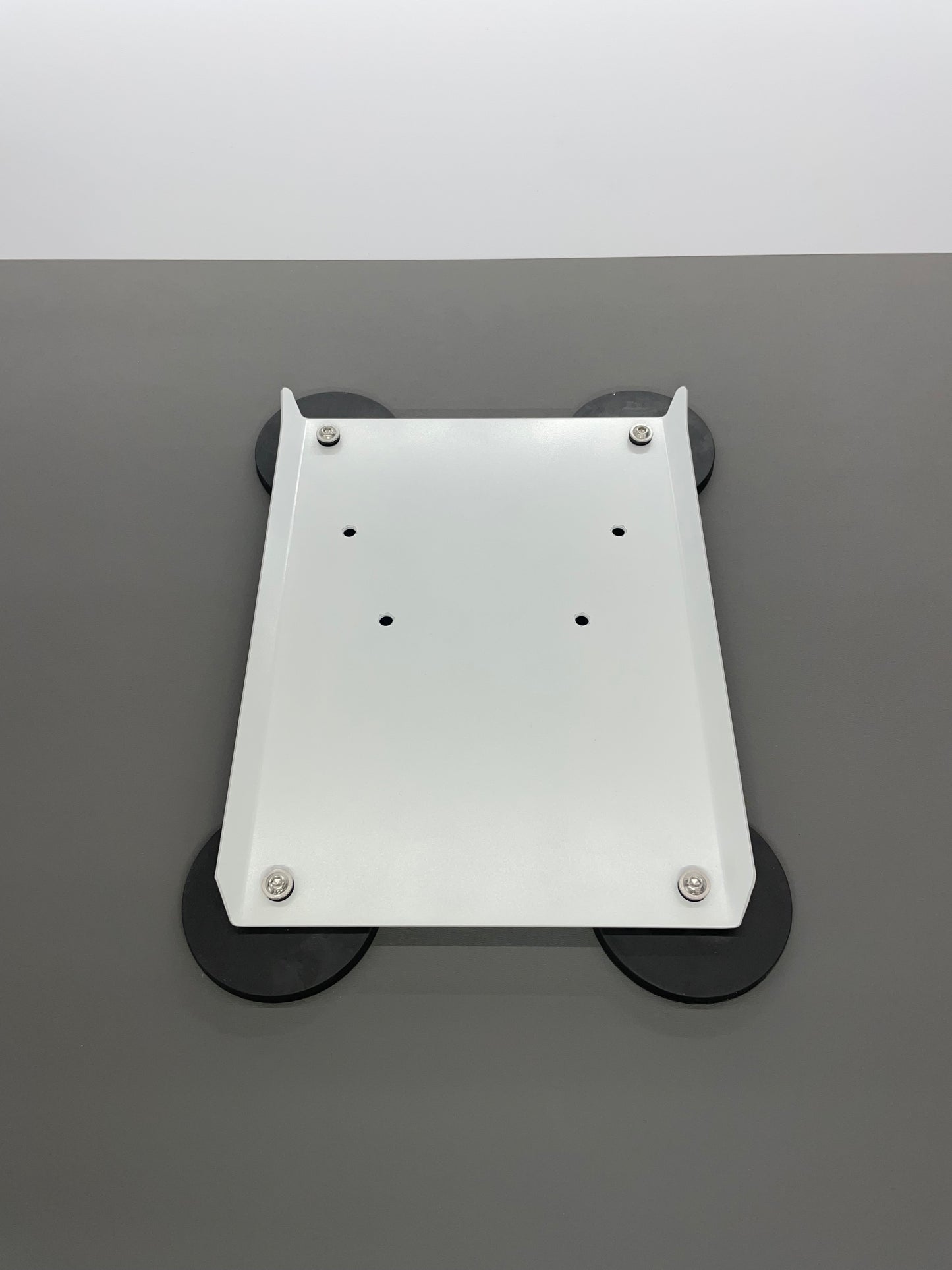

• Black textured or gloss white powder coat provides a durable, weather resistant finish

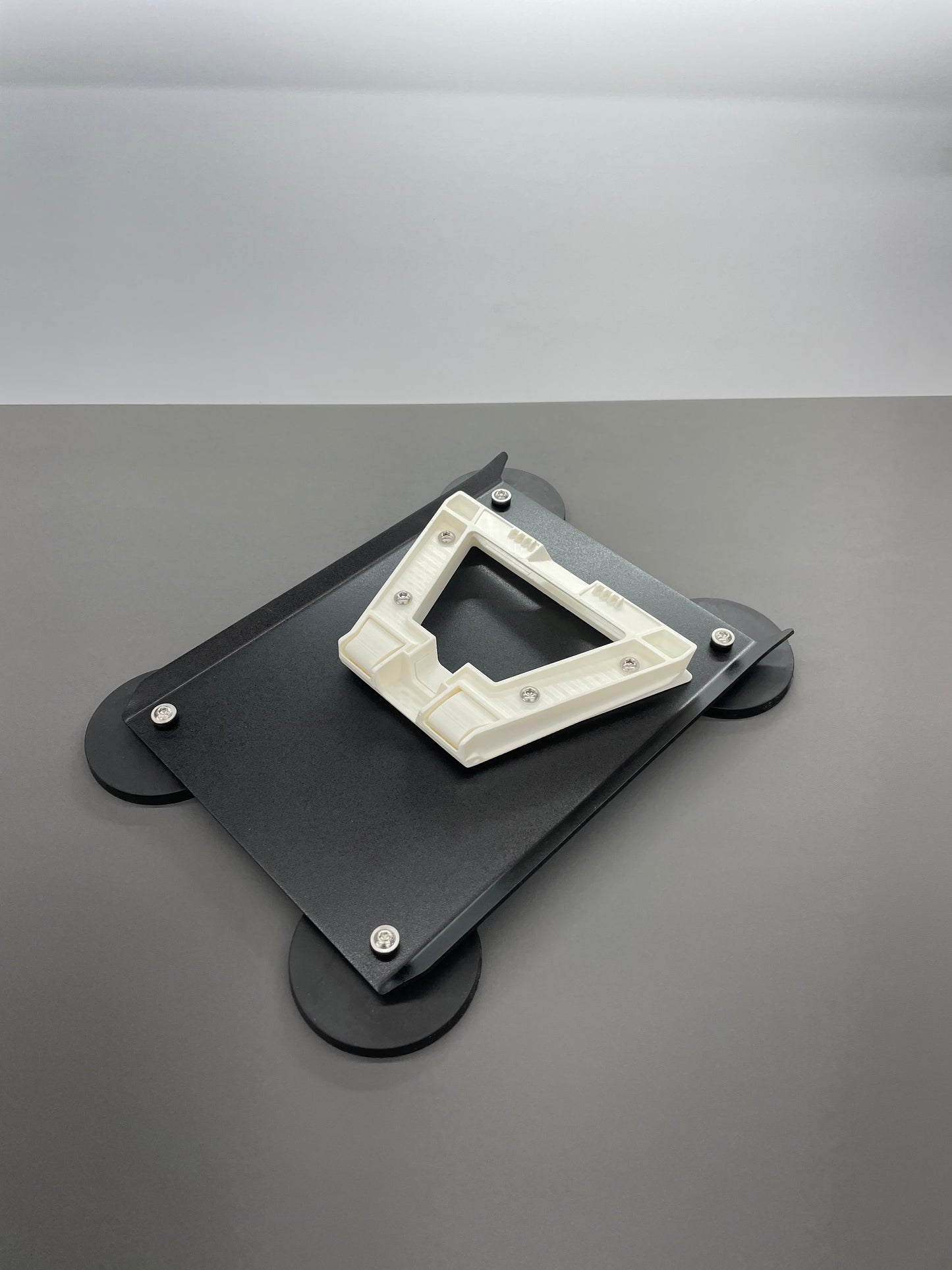

• Utilizes the kickstand provided in your kit from Starlink.
• Requires drilling 1/4 inch holes at the 4x pre-marked locations

 This mount requires the following to be used successfully:

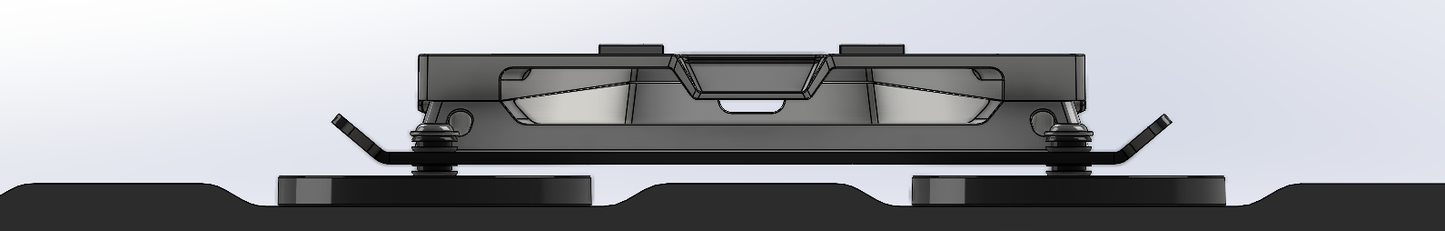

• Maximum roof stiffening rib height of 3/8"
• (1x) Kickstand (Not included in this kit. Order from https://www.starlink.com/)
• Requires slight modification (drilling)
• Check for a clear 110 degree “line of sight” to the sky above the antenna face

Kit Contents:

• (1x) Mount Plate
• (1x) Kickstand Mounting Hardware
• (4x) ¼-20 Kickstand Mounting Screws, Washers, and Locknuts

Note: Kickstand, and antenna are not included with the mount.

Magnet Measurements:

• Standard Magnets:
  • Magnet Size: 2.6in
  • Magnet footprint (center to center): 6.75in x 10.25in
  • Magnet to magnet clearance (down center): 4.375in
  • Clear height: 7/16" (for max 5/16" high roof rib)
    • Use longer magnet screws and washers if needed to accommodate larger ribs (not required for most applications)
• High Strength Magnets:
  • Magnet Size: 3.5in
  • Magnet footprint (center to center): 6.75in x 10.25in
  • Magnet to magnet clearance (down center): Approx. 3.28in
  • Clear height: 7/16" (for max 5/16" high roof rib)
    • Use longer magnet screws and washers if needed to accommodate larger ribs (not required for most applications)
